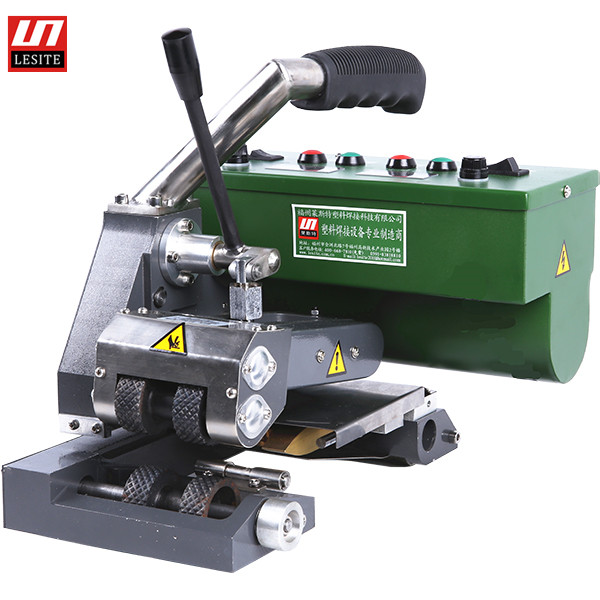

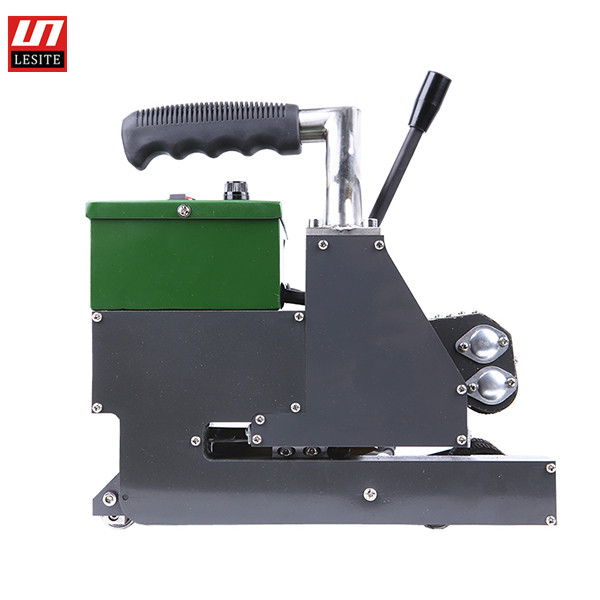

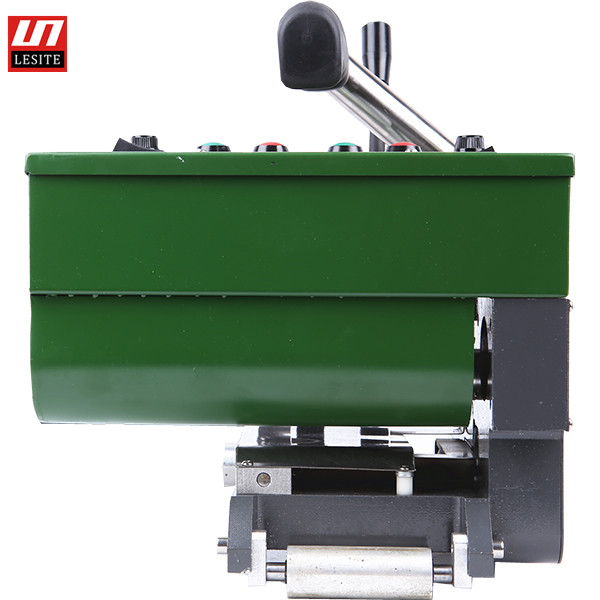

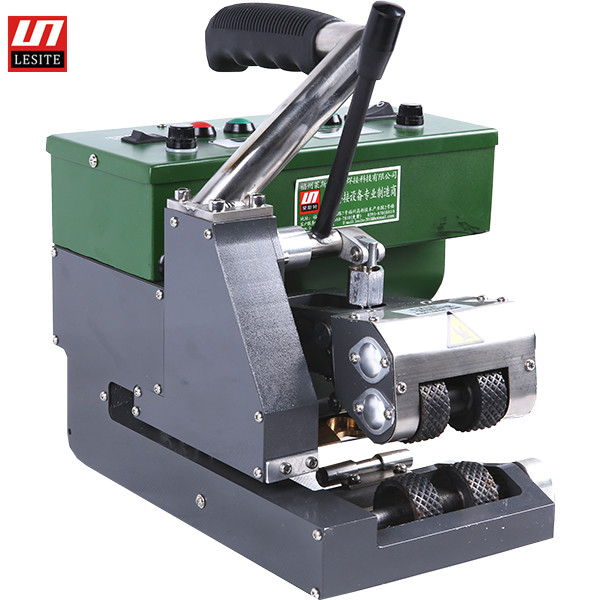

Geothermal wedge welding machine LST-GM2

Short description:

Adopt advanced hot wedge structure. Use high-power, high-speed, high-pressure welding of hot melt materials with a thickness of 0.2mm-2.0mm. LST-GM2 adopts unilateral welding method. This machine is specially designed for water conservancy, aquaculture, landfill, chemical mining, sewage treatment, roofing engineering and other waterproof projects.

send email

Advantage

Specifications

Application

Video

Manual

Advantage

Spread the film toward one edge.

Control System

Advanced feedback type intelligent digital control system, temperature and speed are displayed intuitively on the LCD screen, with high control precision and strong protection function.

roller

Special steel pressure roller, strong pressure, non-slip, durable.

Previous: Contract HDPE hot wedge welding machine LST-GM1

next: Heavy Geographically Heated Wedge Welder Model LST900

Model	LST-GM2
Rated Voltage	230V/120V
Rated Power	600W
Frequency	50/60HZ
Heating Temperature	50~450℃
Welding pressure	100-1000N
Welding Speed	0.5-5.0m/min
Material Thickness Welded	0.2mm-2.0mm single layer
Seam Width	15mm*2,Interior Cavity 15mm (customized)
Weld Strength	≥85%material
Overlap Width	12cm
Membrane Laying Ways?	Single side to the same side into the membrane
Digital display function	Temperature and speed dual display
Body weight	7.5kg
Warranty	1 year
Certification	CE
